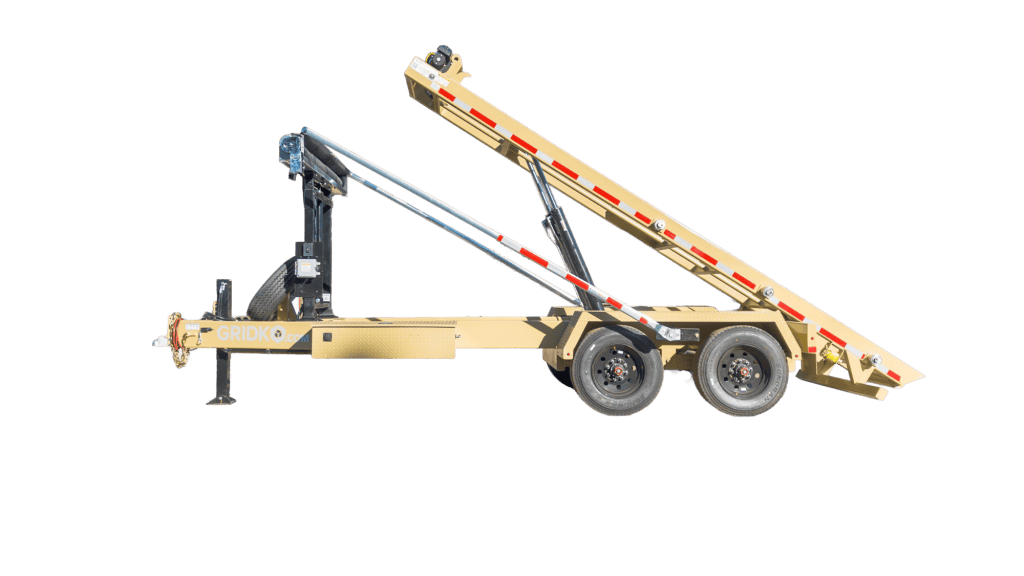

Compact, versatile, and tough — Gridko bumper pull trailers deliver reliable hauling power for everyday jobs. Perfect for agriculture, landscaping, and light construction, these trailers balance maneuverability with strength, making them a work-ready solution for tighter sites and smaller fleets.

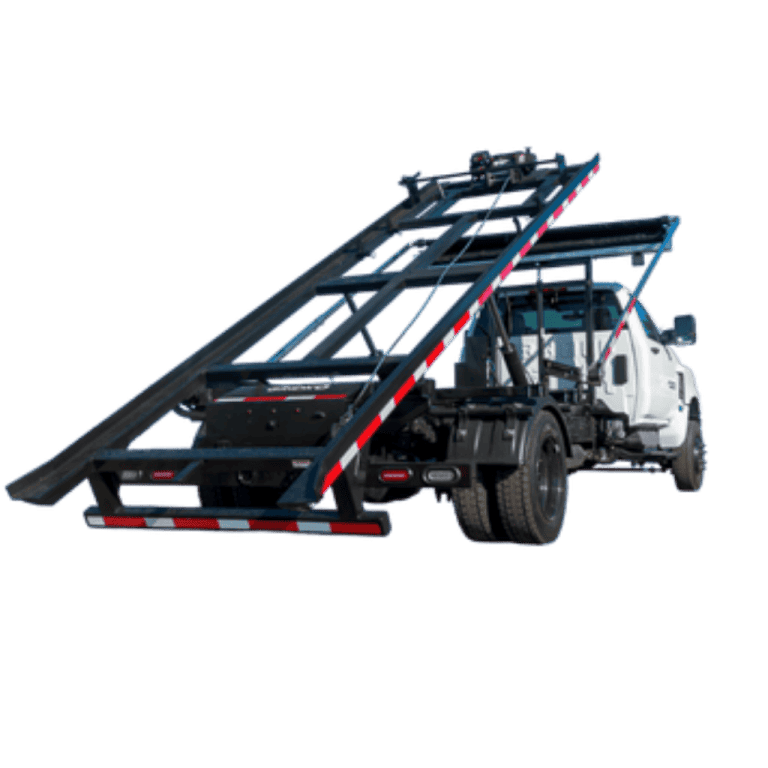

Electric Winch Models
GKH-145E –
Electric over hydraulic roll-off hoist with a 14,500lb capacity winch. Up to 14′ dumpsters. For Class5 pickup trucks. (19,500 LB GVWR MINIMUM)
GKH-180E
Electric over hydraulic roll-off hoist with an 18,000 lb capacity. Up to 16′ dumpsters. For Class 6 pickup trucks. (22,000 LB GVWR MINIMUM)
GKH-220E
Electric over hydraulic roll-off hoist with an 22,000 lb capacity. Up to 18′ dumpsters. For Class 6 & 7 derated trucks. (25,999 GVWR MINIMUM)
**available in 36″, 47″, 60″, and dual rail configurations**

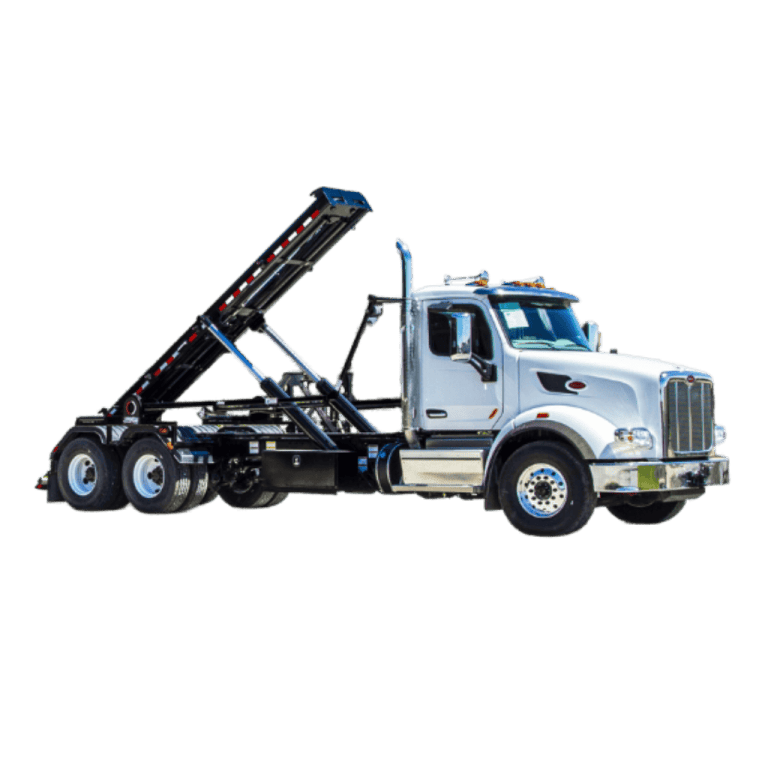

hydraulic reeving models
GKH-180R –
Fully hydraulic reeving system roll-off hoist with an 18,000 lb capacity. Up to 16′ dumpsters. For Class 6 pickup trucks (22,000 LB GVWR MINIMUM)
GKH-220R –
Fully hydraulic reeving system roll-off hoist with a 22,000 lb capacity. Up to 18′ dumpsters. For Class 6 & 7 derated trucks (25,999 LB GVWR MINIMUM)
GKH-300R –
Fully hydraulic reeving system roll-off hoist with a 30,000 lb capacity. Up to 22′ dumpsters. For Class 7 trucks. (33,000 LB GVWR MINIMUM)
GKH-400R –
Fully hydraulic reeving system roll-off hoist with a 40,000 lb capacity. Up to 22′ dumpsters. For Class 8 trucks. (54,000 LB GVWR MINIMUM)
**available in 36″, 47″, 60″, and dual rail configurations**
Gallery
Benefits
The gooseneck design improves weight distribution, towing stability, and maneuverability compared to traditional bumper pull trailers — ideal for higher GVWR and longer dumpster lengths.
Main frames are built from 4″ x 10″ rectangular tubing or large I-beam / C-channel combinations, paired with reinforced crossmembers and tilt frames to handle demanding commercial loads day after day.
Dexter tandem axle kits (single or dual wheel), 20-ply load range “J” tires, and oversized electric drum brakes are spec’d for serious duty cycles and heavier materials.
Dual Group 27 batteries, onboard 110V charger, wireless/cable remote controls, dual lift cylinders, DOT LED lighting, sealed wiring, and electric-hydraulic tarp systems with your logo all come standard.
Every trailer can be finished in your choice of Sherwin-Williams color code, with reflective tape, safety decals, and platform details tailored to your operation.

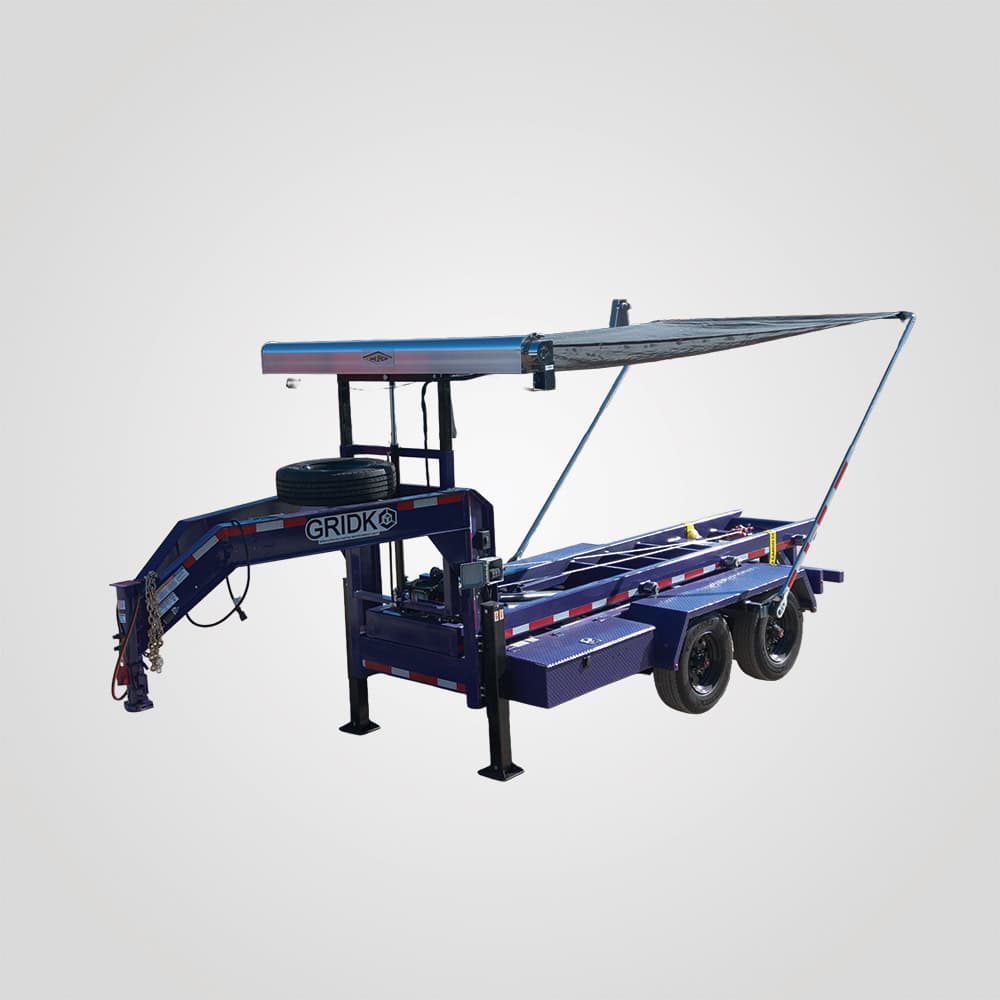

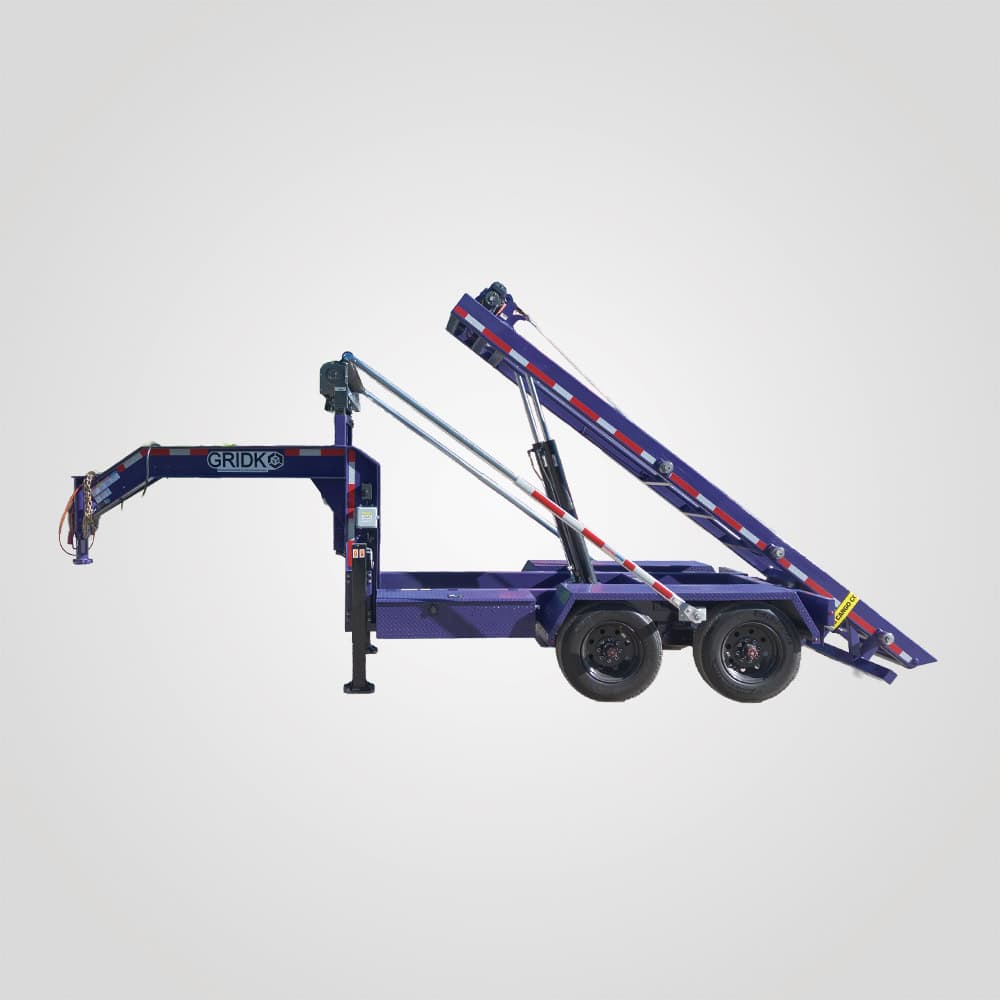

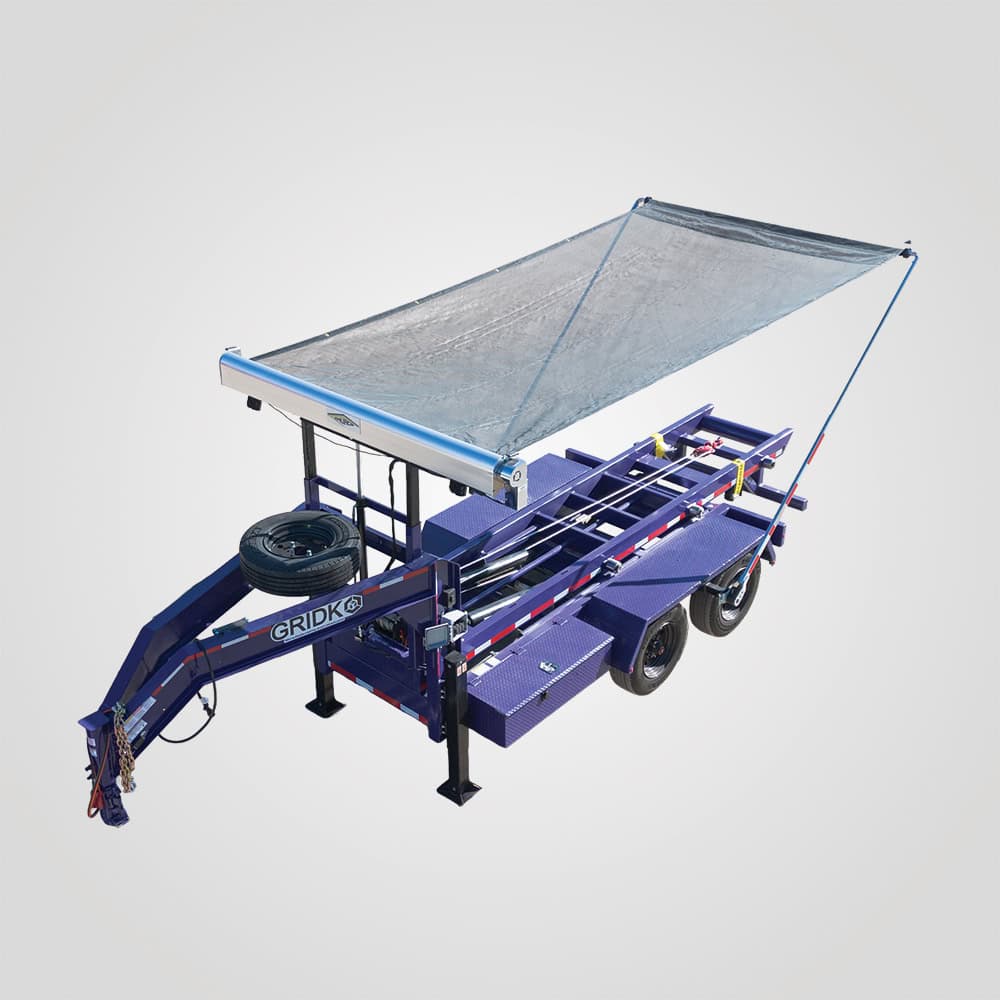

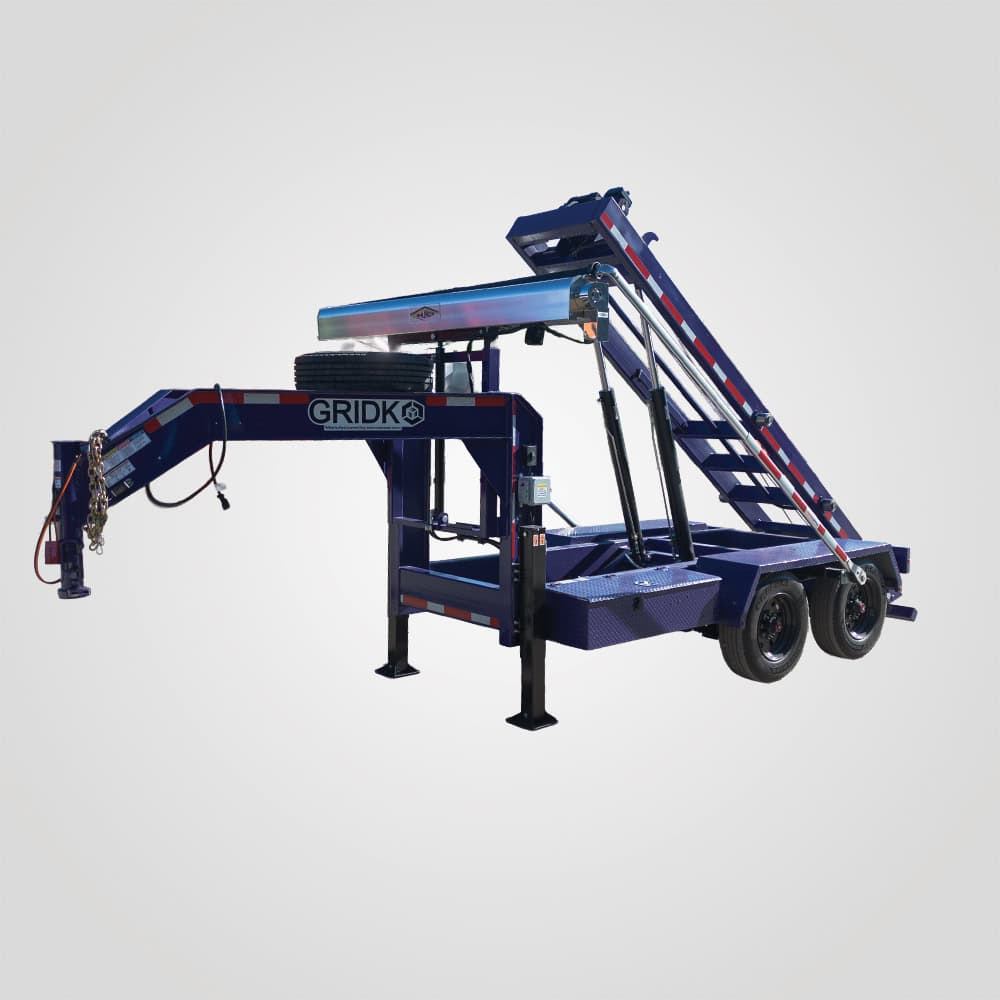

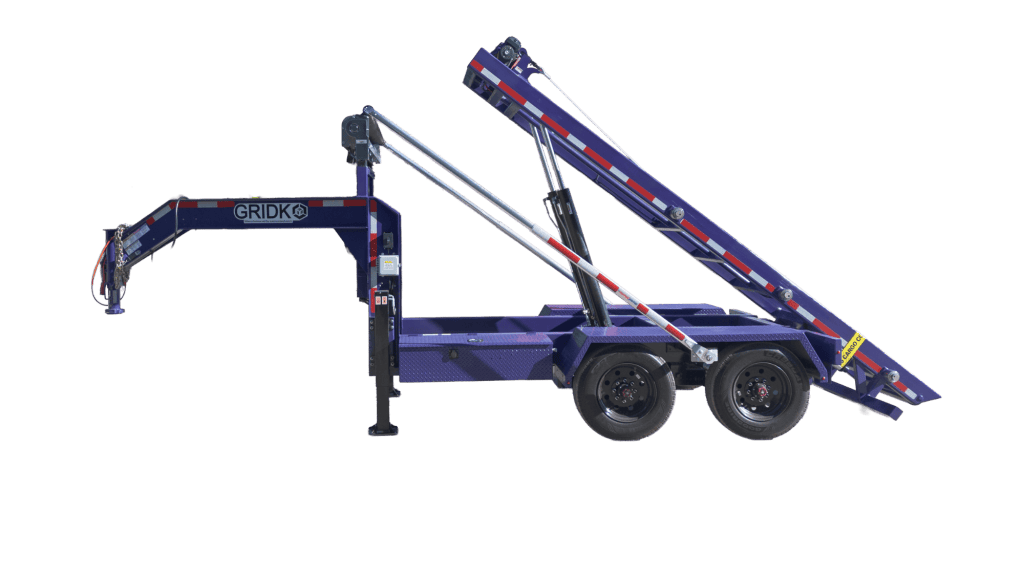

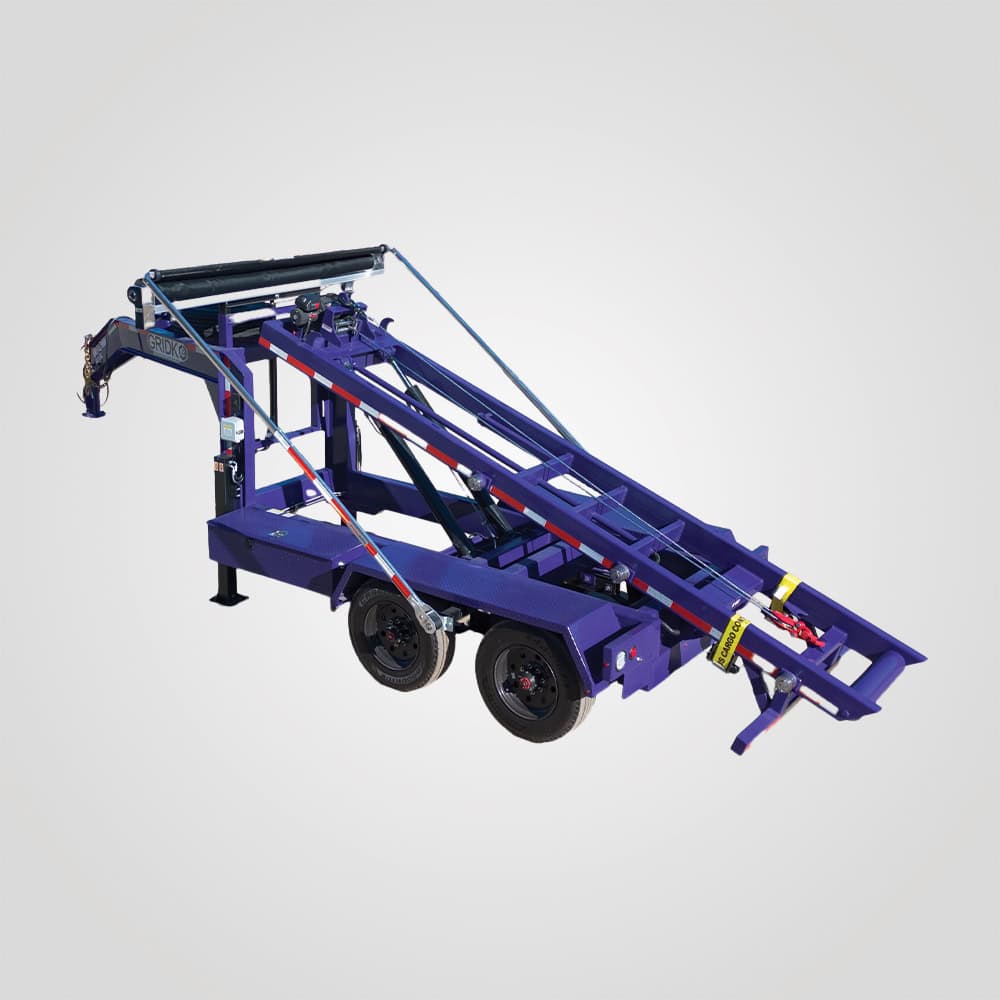

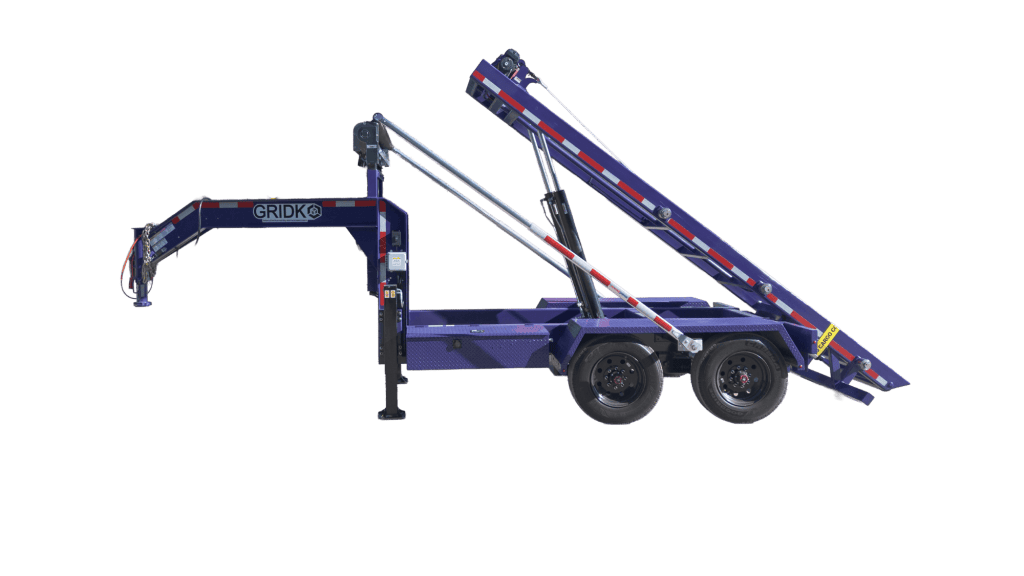

Gooseneck Trailer Features
| Feature | Specification | Notes |
|---|---|---|
| Main Frame | 4″ x 10″ Rectangular Tubing or 8″ I-Beam + C-Channel (model dependent) | Heavy-duty steel construction |
| Tongue / Neck | 10″ or 12″ I-Beam Gooseneck | Improved towing stability and weight distribution |
| Axles | Dexter Tandem Axles (7k, 9k, 10k, 15k) | Single or dual wheel depending on GVWR |
| Brakes | Electric Drum Brakes | Oversized drums on higher GVWR models |
| Tires & Wheels | 17.5″ 20-ply, Load Range J | Commercial-grade tires for heavy loads |
| Winch | Warrior 18,000–25,000 lb | Capacity varies by model |
| Lift Cylinders | Dual 3.5″ or 4″ Bore Cylinders | Up to 30k+ max rated lift |
| Power & Controls | Dual Group 27 Batteries, Onboard 110V Charger | Cable & wireless remote included |
| Lighting | All LED, DOT-Compliant | Sealed wiring harness & 7-way plug |
| Tarp System | Electric-Hydraulic Tarp System | Custom logo available |
| Finish | Sherwin-Williams Industrial Coating | Available in all SW color codes |
Available Gooseneck Models
| Model | GVWR | Dumpster Length | Axle / Wheel Setup |
|---|---|---|---|
| 14k Gooseneck – 12′ | 14,000 lbs | 12′ | 2 x 7k, Single Wheel |
| 14k Gooseneck – 14′ | 14,000 lbs | 14′ | 2 x 7k, Single Wheel |
| 18k Gooseneck – 12′ | 18,000 lbs | 12′ | 2 x 9k, Single Wheel |
| 18k Gooseneck – 14′ | 18,000 lbs | 14′ | 2 x 9k, Single Wheel |
| 18k Gooseneck – 16′ | 18,000 lbs | 16′ | 2 x 9k, Single Wheel |
| 20k Gooseneck – 16′ | 20,000 lbs | 16′ | 2 x 10k, Dual Wheel |
| 30k Gooseneck – 16′ | 30,000 lbs | 16′ | 2 x 15k, Dual Wheel |
| 30k Gooseneck – 20′ | 30,000 lbs | 20′ | 2 x 15k, Dual Wheel |
Typical Applications
- Dumpster rental & waste hauling
- Construction & demolition debris
- Industrial and municipal roll-off routes
- Roofing, restoration & disaster cleanup
- Material handling for yards and transfer stations
